Crucial Warning: Match the exact model number (XT1580, XT1581, or XT1585), the CID, and the carrier subsidy tag on the device label or fastboot screen before flashing. CID numbers are not consistent across different Motorola device families — CID12 means Mexico/Latin America here but meant Latin America/Argentina on the Moto X Play (lux) archive with different specific carriers attached — always match the full branch/subsidy tag, not the CID number alone. Four XT1580 builds below share an identical build number (NPKS25.200-12-9) across different regions; each has a distinct file size, so match the region tag rather than assuming any two are interchangeable. The Mexico XT1581 file is packaged under a different, community-style filename with no CFC.xml suffix — expect its extracted folder layout to look a little different from the other seven builds even though it's the same package family.

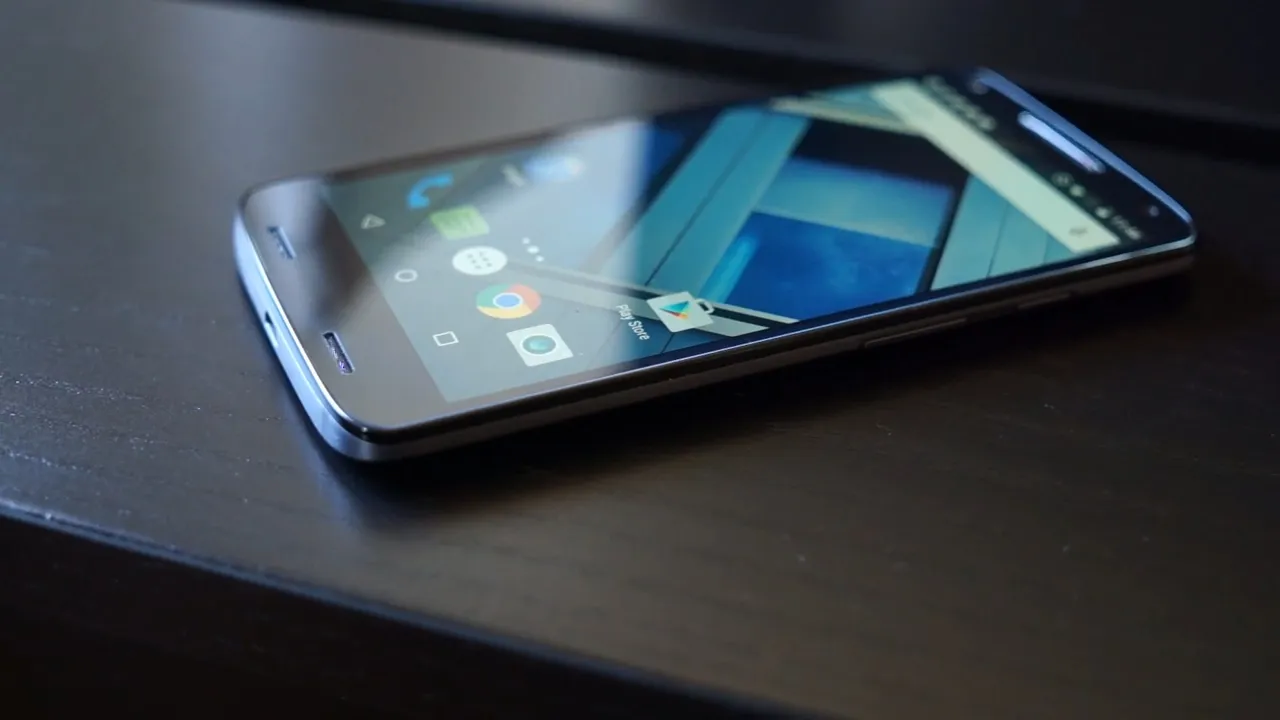

Download Firmware for Motorola Moto X Force / Droid Turbo 2 2015 (XT1580/XT1581/XT1585 kinzie)
XT1585_KINZIE_VERIZON_7.0_NCK25.118-10.5_cid2_subsidy-DEFAULT_CFC.xml.zip
MD5: fdec5d9b206b7495b9b28ca09682704e
XT1580_KINZIE_RETMX_IUSMX_7.0_NPKS25.200-17-8_cid12_subsidy-IUSMXLA_CFC.xml.zip
XT1580_KINZIE_RETMX_DS_7.0_NPKS25.200-12-9_cid12_subsidy-DEFAULT_CFC.xml.zip
Three other builds below (RETLA DS, RETLA, RETEU) share this exact build number across different regions — each has a distinct file size, so match the region tag on your device rather than the build number.
⬇️ Download via Google DriveXT1580_KINZIE_RETLA_DS_7.0_NPKS25.200-12-9_cid12_subsidy-DEFAULT_CFC.xml.zip
Shares the same build number as RETMX DS, RETLA (single-SIM), and RETEU — each is a distinct file size for a distinct region; match the region tag.
⬇️ Download via Google DriveXT1580_KINZIE_RETLA_7.0_NPKS25.200-12-9_cid12_subsidy-DEFAULT_CFC.xml.zip
Shares the same build number as RETMX DS, RETLA DS, and RETEU — this is the single-SIM RETLA build; the DS build above is the dual-SIM version for the same region.
⬇️ Download via Google DriveXT1580_KINZIE_RETEU_7.0_NPKS25.200-12-9_cid7_subsidy-DEFAULT_CFC.xml.zip
Shares the same build number as the three Mexico/Latin America builds above but is CID7, not CID12 — this is the Europe-wide retail build.
⬇️ Download via Google DriveXT1581_KINZIE_RETCN_DS_5.1.1_LPKS23.229-1-5_cid11_subsidy-DEFAULT_CFC.xml.zip
Noticeably smaller than the other files in this archive — consistent with an earlier Android 5.1.1 stock build rather than a corrupt or incomplete package.
⬇️ Download via Google DriveMotorola_Moto_X_Force_XT1581_60_Mex_MPK24.78-8_CID12_6.0.zip
Same XT1581 model number as the China build above, but this one is for Mexico (CID12 vs CID11) — two different regional builds under one model number, not the same firmware twice.
⬇️ Download via Google DriveFlashing Overview for Motorola Moto X Force / Droid Turbo 2 2015 (XT1580/XT1581/XT1585 kinzie)
- Confirm your exact model number, CID, and carrier subsidy tag
- Back up your data — mfastboot flashing wipes userdata
- Download the CFC.xml package matching your exact model, CID, and subsidy
- Flash with Motorola's mfastboot binary, not stock Android SDK fastboot
- Verify Android version and network/SIM behavior after flashing
Expand preparation checklist for Motorola Moto X Force / Droid Turbo 2 2015 (XT1580/XT1581/XT1585 kinzie)
- Confirm the exact XT1580/XT1581/XT1585 model number from the device label, Settings > About phone, or the fastboot screen.
- Identify the CID and carrier subsidy tag before downloading — several builds share a build number but differ by region and file size.
- Back up any accessible user data; mfastboot flashing wipes userdata.
- Install the Motorola USB drivers and the Motorola mfastboot binary (not stock Android SDK fastboot) before attempting a manual flash.
- Use a reliable USB cable and a charged battery — this device has a non-removable battery, so a mid-flash power loss carries more risk than on removable-battery devices.
Compatibility & Bootloader Notes
Reflashing stock firmware restores the system, boot, and radio images only; it does not change the bootloader lock state. Locking or unlocking the bootloader is a separate procedure requiring Motorola's official unlock-token process at motorola.com/unlock and explicit fastboot lock or unlock commands. Treat bootloader unlock as not guaranteed on XT1585 (Droid Turbo 2, Verizon) specifically, unlike the unlocked international retail model numbers. None of this affects the standard stock CFC.xml/mfastboot reflash covered on this page, which does not require an unlocked bootloader on any of the three model numbers. Standard unmodified fastboot cannot correctly write these images on its own — Motorola's mfastboot binary is required.
Ready to Flash This Firmware?
Full step-by-step instructions for Motorola Moto X Force / Droid Turbo 2 2015 (XT1580/XT1581/XT1585 kinzie), including prerequisites, error fixes, and screenshots, are on FlashGuideHub's Motorola flashfile.bat / CFC XML Script guide.
Can also be flashed via Motorola Rescue & Smart Assistant: Open Motorola Rescue & Smart Assistant Guide →
Frequently Asked Questions
Check the model number in Settings > About phone, or compare the Product/Variant line on the fastboot screen (kinzie XT1580/XT1581/XT1585) against the CID and carrier subsidy tag printed alongside it.
KINZIE is the internal Motorola codename used in most of the raw filenames for this device; the differently-formatted Mexico XT1581 file uses the retail product name instead. Both refer to the same XT1580/XT1581/XT1585 hardware family — some third-party spec databases separately label this same hardware "Bounce."
Match the region tag (RETMX, RETLA DS, RETLA, or RETEU) to your device rather than the build number — each is a distinct package with its own file size for a distinct market, even though Motorola released them under one shared build.
Only the XT1585 Verizon build had a self-generated checksum supplied. No checksum was supplied for any other file in the source list, so the md5 field is left blank on every other row rather than guessed.
