Crucial Warning: Strict processor boundary: Models Z170C (P01Z) and Z170CG (P01Y) are built on x86 64-bit Intel SoFIA Atom x3 processors and use RAW AFT packages. Model Z170MG (P001) is built on an ARM 32-bit MediaTek MT8382 chipset. Cross-flashing between Intel and MediaTek models will corrupt the preloader or dnx boot blocks and permanently brick the tablet.
Official ASUS ZenPad C 7.0 Firmware & Service Packages
Intel Wi-Fi Model (Z170C / P01Z) Firmware 4 packages
Asus_Zenpad_C_7.0_Z170C_WW_Z170C_V12.26.4.69_20170410_AFT.zip
Final official RAW firmware package for model Z170C (Intel x3-C3200 Wi-Fi). Ready to load in ASUS Flash Tool.
⬇️ Download via Google DriveZ170C_UL-P01Z-WW-12.26.4.69-user.zip
Official recovery update package for Z170C. Verified MD5 hash. Copy to root of storage or install via stock recovery.
MD5: 1ec88f25d61e817005cef2e1b26a7032
Z170C_UL-P01Z-WW-12.26.4.66-user.zip
Official maintenance recovery update for model Z170C Wi-Fi. Verified MD5 hash check.
MD5: bd2e7807995ec91aa0f2fac7d4c33fe9
Z170C_UL-P01Z-JP-12.26.4.66-user.zip
Official stock recovery package for Japan SKU units of model Z170C.
MD5: 3f42866c8dda9e5066f49461401a736d
Intel 3G Voice Model (Z170CG / P01Y) Firmware 4 packages
ASUS ZenPad C 7.0 (Z170CG)_UL-P01Y-WW-12.26.4.69-user.zip
Final official recovery update package for model Z170CG (Intel x3-C3230RK 3G). Verified MD5 hash check.
MD5: f6af9e222650e20218ed531a65d4d517
ASUS ZenPad C 7.0 (Z170CG)_UL-P01Y-TR-12.26.4.61-user.zip
Official stock recovery package for Turkey regional SKU units of model Z170CG.
MD5: 07587ec92875d15f9e27fb340db16ef6
WW_Z170CG_V12.26.4.57-user-201604192009-rawdata_fb.zip
Fastboot rawdata firmware for model Z170CG (Intel x3-C3230RK 3G). Recommended for unbricking and factory restore.
⬇️ Download via Yandex.DiskWW_Z170CG_V12.26.4.42-user-201511201736-rawdata.zip
Earlier official RAW firmware archive for model Z170CG. Useful for rolling back to an earlier software release.
⬇️ Download via Yandex.DiskMediaTek 3G Model (Z170MG / P001) Firmware 3 packages
Asus_Zenpad_C_7.0_Z170MG_WW_Z170MG-12.0.1.25-20151110_5M_AFT.zip
Official ASUS Flash Tool package for model Z170MG with MediaTek MT8382 processor. Do not use on Intel Z170C or Z170CG.
⬇️ Download via Google DriveAsus_Zenpad_C_7.0_Z170MG_WW_Z170MG-12.0.1.25-20151110_5M-130924307043463206.rar
Official factory archive with MT8382 scatter file for SP Flash Tool. Verified MD5 hash check.
⬇️ Download via AFHAsus_ZenPad_C_7.0_P001_EMMC_Dump.zip
Raw eMMC factory dump for hardware unbricking, replacing dead eMMC chips, and programming via box tools.
⬇️ Download via Google DriveCustom Recovery & Diagnostic Tools 1 package
CWM_Recovery_z170c_cg.img
ClockworkMod custom recovery for Intel Z170C and Z170CG. Boot temporarily via fastboot boot CWM_Recovery_z170c_cg.img.
MD5: 42643b89c37fdf7852f79095e9a01b52
Quick Model-Specific Flashing Walkthrough

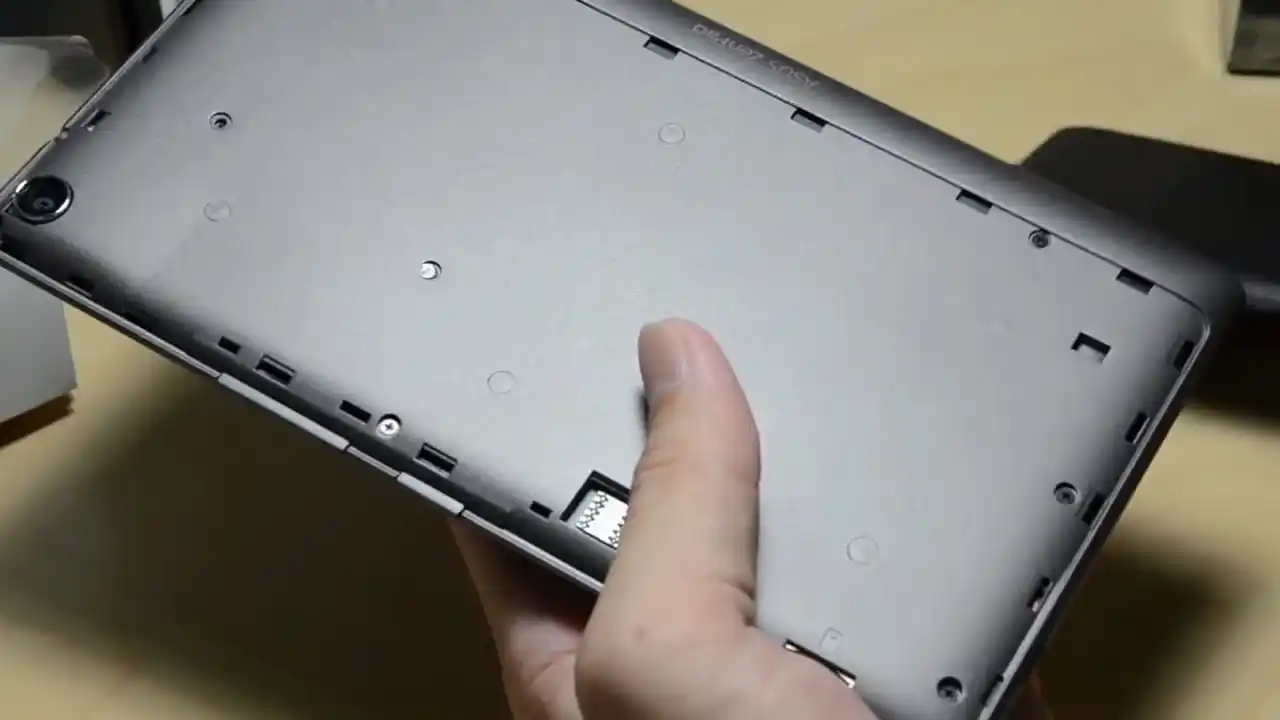

- Check Rear Label for Exact Model Number
- Download Target Package and Required Drivers
- Enter Download Mode on Tablet
- Execute Flashing in ASUS Flash Tool or SP Flash Tool
- Wait for Flash Completion and Reboot
Pre-Flash Driver Installation and Model Verification
- 1. Verify your exact model number on the rear casing label: Z170C (Wi-Fi), Z170CG (3G Intel), or Z170MG (3G MediaTek).
- 2. For Intel models (Z170C/Z170CG), install ASUS Android USB drivers and Intel USB Driver for Android Devices.
- 3. For MediaTek model (Z170MG), install MediaTek Preloader USB VCOM drivers.
- 4. Ensure the internal battery has at least 50% charge to prevent abrupt drops during system partition writing.
- 5. Back up essential photos, documents, and media to an external microSD card or PC before flashing.
Intel SoFIA vs MediaTek MT8382 Architecture Separation
Intel SoFIA models require Droidboot Fastboot mode with ASUS Flash Tool. MediaTek Z170MG requires SP Flash Tool with MT8382 scatter file.
Ready to Flash This Firmware?
Full step-by-step instructions for ASUS ZenPad C 7.0, including prerequisites, error fixes, and screenshots, are on FlashGuideHub's ASUS Flash Tool guide.
Can also be flashed via SP Flash Tool: Open SP Flash Tool Guide →
Technical Hardware Taxonomy and Flashing FAQ
The Z170C and Z170CG run on Intel SoFIA 64-bit x86 processors (Atom x3-C3200 for Wi-Fi and x3-C3230RK for 3G cellular). In contrast, the Z170MG is an ARM 32-bit architecture powered by a MediaTek MT8382 quad-core chip. Partition tables, kernel binaries, and preloader blocks share zero compatibility between Intel and MediaTek hardware lines.
The P001 eMMC dump package is a raw byte-for-byte memory backup designed specifically for the MediaTek-based Z170MG. It is utilized by workshop specialists when a device is completely unbootable, will not enter BROM mode, or requires a replacement eMMC chip programmed via hardware boxes (such as UFI Box, Medusa Pro, or Easy-JTAG) with direct ISP pinouts.
On the Intel SoFIA models (Z170C/Z170CG), the custom ClockworkMod recovery image can be booted temporarily via Fastboot without permanently flashing it. With the tablet in Droidboot mode, executing fastboot boot CWM_Recovery_z170c_cg.img in command prompt temporarily loads the CWM ramdisk into RAM, allowing users to create partition dumps or install root packages while keeping the stock recovery partition intact.
The Wi-Fi only Z170C completely omits the physical 3G baseband transceiver, SIM card tray headers, and cellular antenna flex cables on the motherboard. Flashing Z170CG firmware onto a Z170C will cause modem initialization errors, baseband wakelocks, and battery drain without enabling any cellular functionality.
